Liberty™ brand Side Discharge

liberty-group-case-lg

Introducing the Liberty™ brand Side Discharge
Inverter System

A new way to think about HVAC – redefining efficiency and convenience. The best comfort system is the kind you don’t have to worry about. It comes on the moment you need it and then runs quietly and efficiently all year long. Liberty™ brand Side Discharge Inverter Systems are loaded with features designed to provide outstanding performance for years to come.

Our systems are priced to help add comfort to your budget from a local independent Liberty brand dealer. And that’s only the beginning. We want you to smile every time you open your utility bill, so we design energy-efficient technology into our units.

Don’t get us wrong, we love our traditional HVAC cube style units, but we know they’re not always “one-size-fits-all.”


A new way of thinking about HVAC.

ASXS6

Air Conditioner
– UP TO 17.2 SEER 2 ASXS6_img  Product Specifications

Product Warranty

Learn More

ASZS6

Heat Pump
– UP TO 17.2 SEER 2 / 8.6 HSPF 2
img_ASZS6_HP  Product Specifications

Product Warranty

Learn More




Slim. Smart. Sound. Savings.

Mount-01 Mount-02

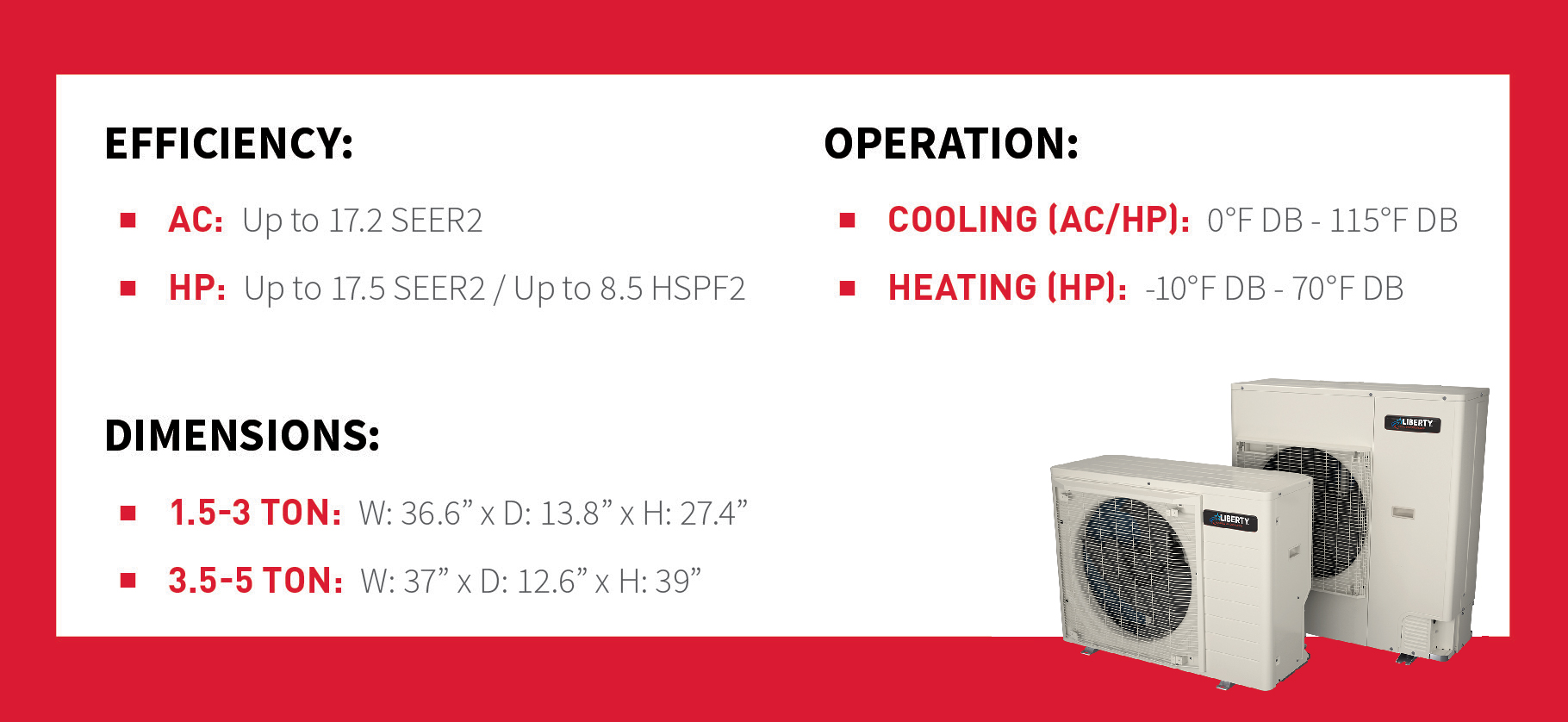

LIB-SD_Overview_Specs


Smart engineering.

img_AC_HP_features

Features & Benefits:

  • Air Conditioner | ASXS6
  • Heat Pump | ASZS6

1  |  Variable-Speed Digitally Commutated Fan - High efficiency and low sound levels.

2  |  Blue Fin Corrosion Coating - The Liberty Side Discharge Inverter System features a 1000 hour salt spray rated coil as standard. This hydrophilic coating helps keep the coil clean.

3  |  7mm Coil - High heat exchanger efficiency and compact casing design.

4  |  Inverter Board Cooled by Refrigerant Circuit1 - Elimination of condenser fan pressure drop caused by heat sink used.

5  |  Proprietary Swing Compressor Technology - High efficiency/low sound levels. Less wear and tear compared to non-swing compressors.


1 Model specific, refer to product engineering manual for details.

1  |  Variable-Speed Digitally Commutated Fan - High efficiency and low sound levels.

2  |  Blue Fin Corrosion Coating - The Liberty Side Discharge Inverter System features a 1000 hour salt spray rated coil as standard. This hydrophilic coating helps keep the coil clean.

3  |  7mm Coil - High heat exchanger efficiency and compact casing design.

4  |  Inverter Board Cooled by Refrigerant Circuit1 - Elimination of condenser fan pressure drop caused by heat sink used.

5  |  Proprietary Swing Compressor Technology - High efficiency/low sound levels. Less wear and tear compared to non-swing compressors.

6  |  Intelligent Defrost Mode2 - The outdoor unit will enable this mode to help reduce frost/ice from building up in cold climate conditions. It will also help with longer heating operation time for additional comfort for occupants (compared to HVAC systems without this function). A selectable defrost backup heat option, when turned off, will lower power consumption during defrost.

7 | Advanced water-shedding drain pan2 - The drain pan is engineered with multiple drain holes and channels to help provide effective water shedding.


1 Model specific, refer to product engineering manual for details.

2 Available on Heat Pump models only.

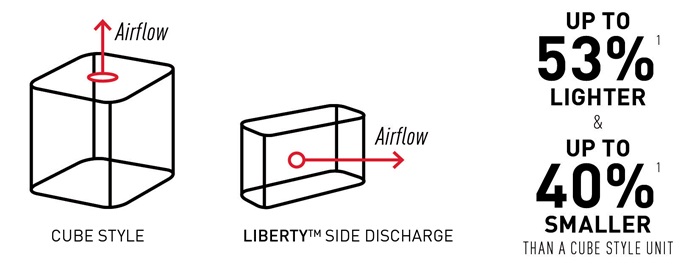

LIB-SD_AppWeight

Good things come in small packages.


The Liberty™ brand Side Discharge offers a compact space-saving solution for homes that may have limited installation options.

Whether homeowners need to free up space in the backyard, on a rooftop, or patio, the Liberty™ brand Side Discharge was designed to optimize space, comfort, and performance.

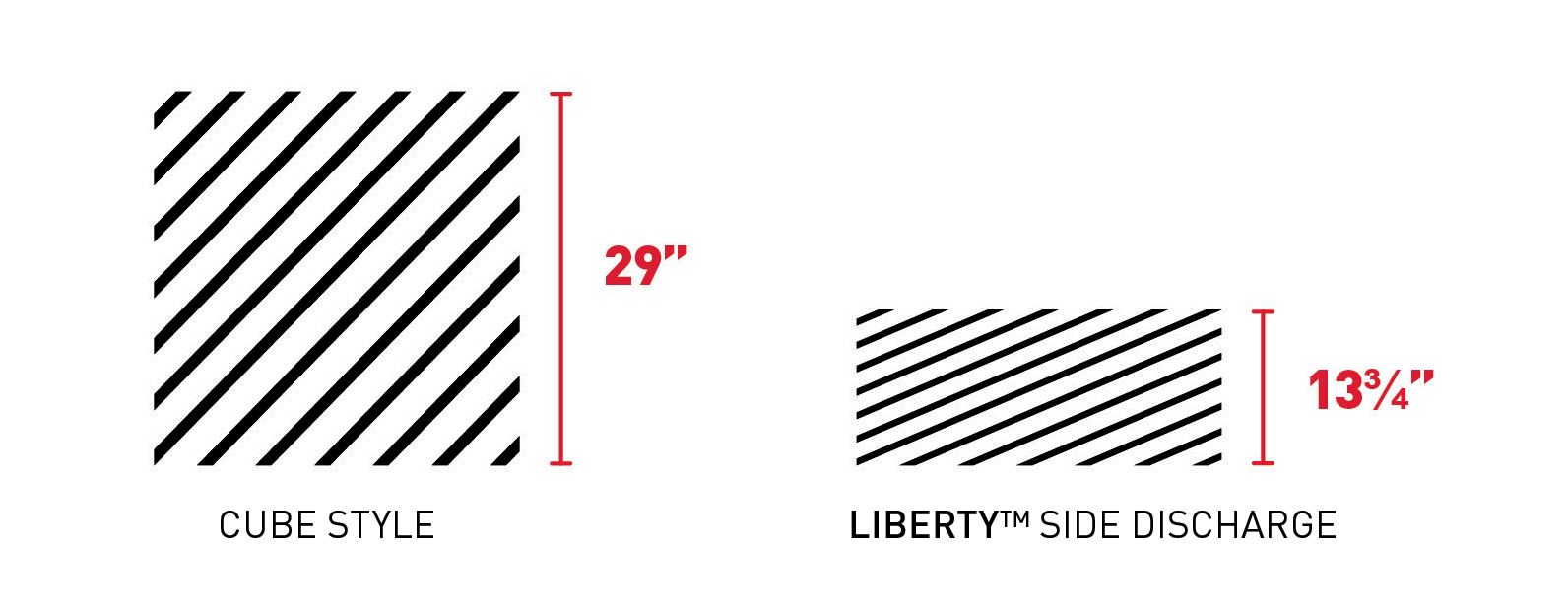

LIB-SD_Footprint

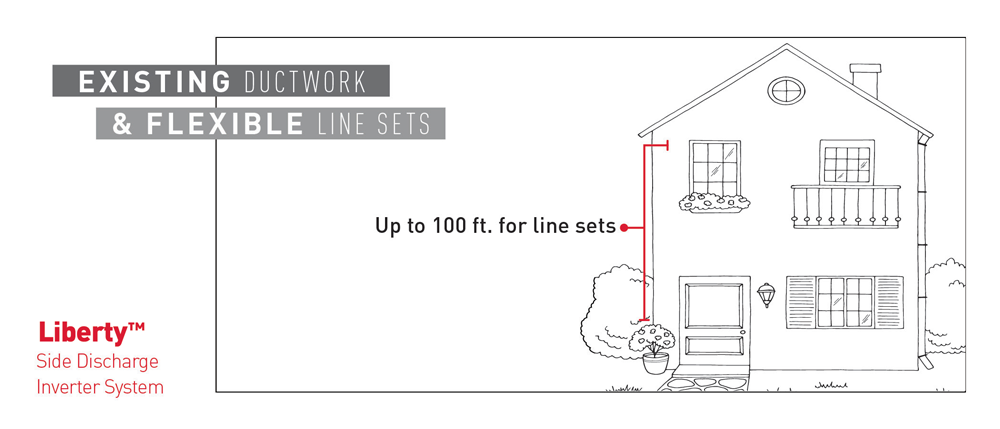

LIB-SD_DuctLines_02-24
